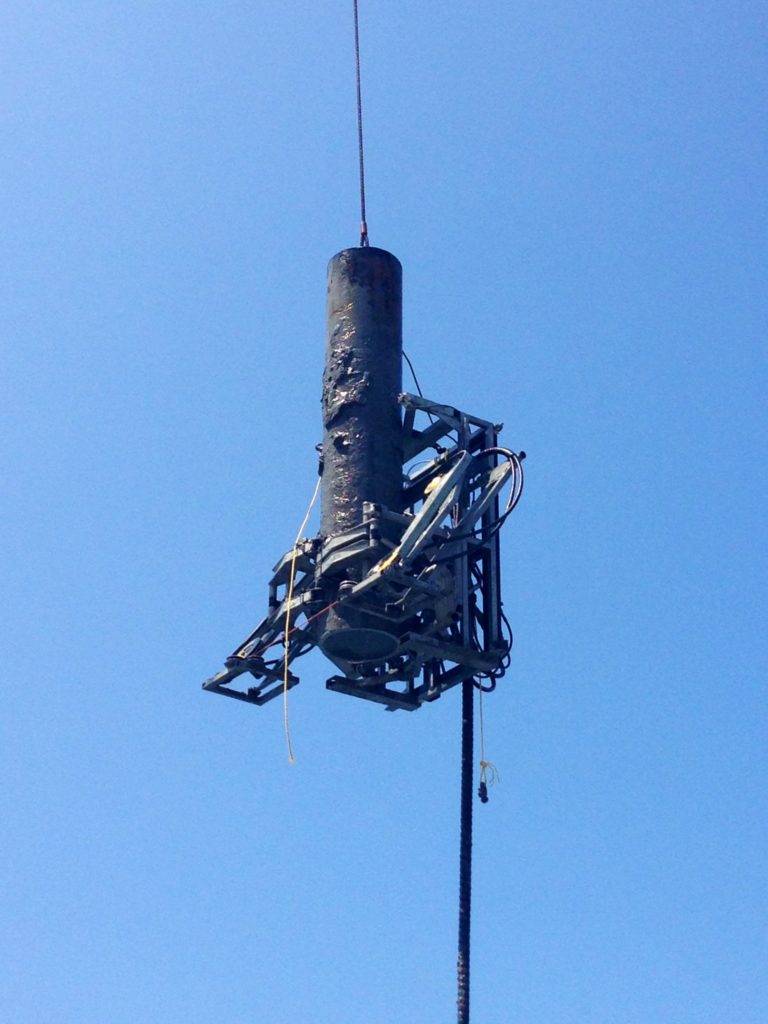

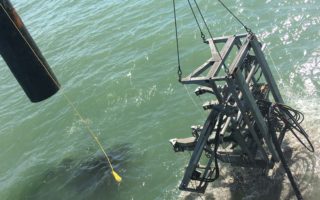

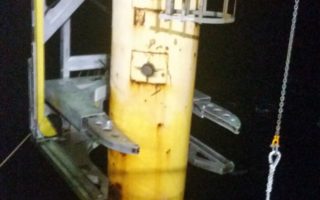

Articulating Diamond Wire Saw Photo

Articulating Diamond Wire Saw

Patent No: US 8,651,098 B2

Ideal for cutting multi-string applications or heavy wall legs and cross members. The vertical stance means it can easily fit in coffer dams or excavations with minimal dredging, where other saws can’t fit. The articulating design requires only 2 feet of clearance around the casing. This saw is ideal for conductor removal.

Articulating Diamond Wire

  • Ideal for cutting multi-string applications or heavy wall legs and cross members
  • Easily fits in coffer dams or excavations with minimal dredging
  • Requires only 2’ of clearance around casing – fitting in tight situations and limiting dredging requirements

Model
Type
Cutting
Capacity
Operating
Dimensions
(L x W x H)
Shipping
Dimensions
(L x W x H)
Operating
Weight
Shipping
Weight
DWS-40a Articulating Frame 22 to 40 inches 60 x 107 x 86 in 86 x 107 x 60 in 2400 lbs 2550 lbs
DWS-60a Articulating Frame 26 to 60 inches 102 x 109 x 128 in 98 x 109 x 97 in 3200 lbs 3200 lbs

Articulating Diamond Wire Saw Video


Live Demo of the Articulating Diamond Wire Saw

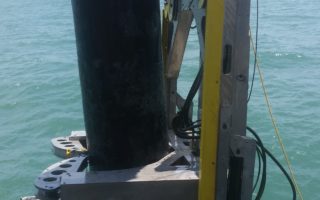

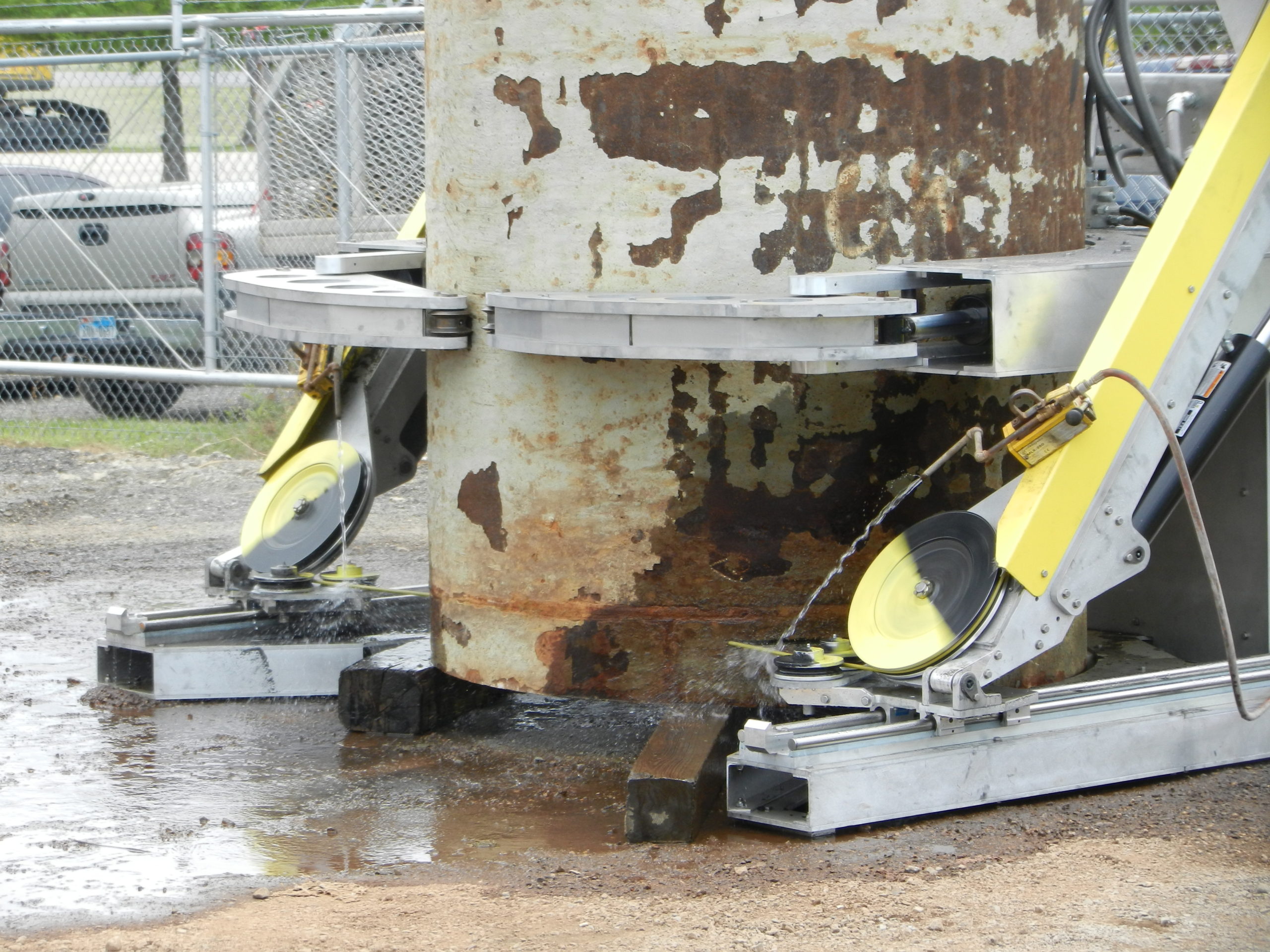

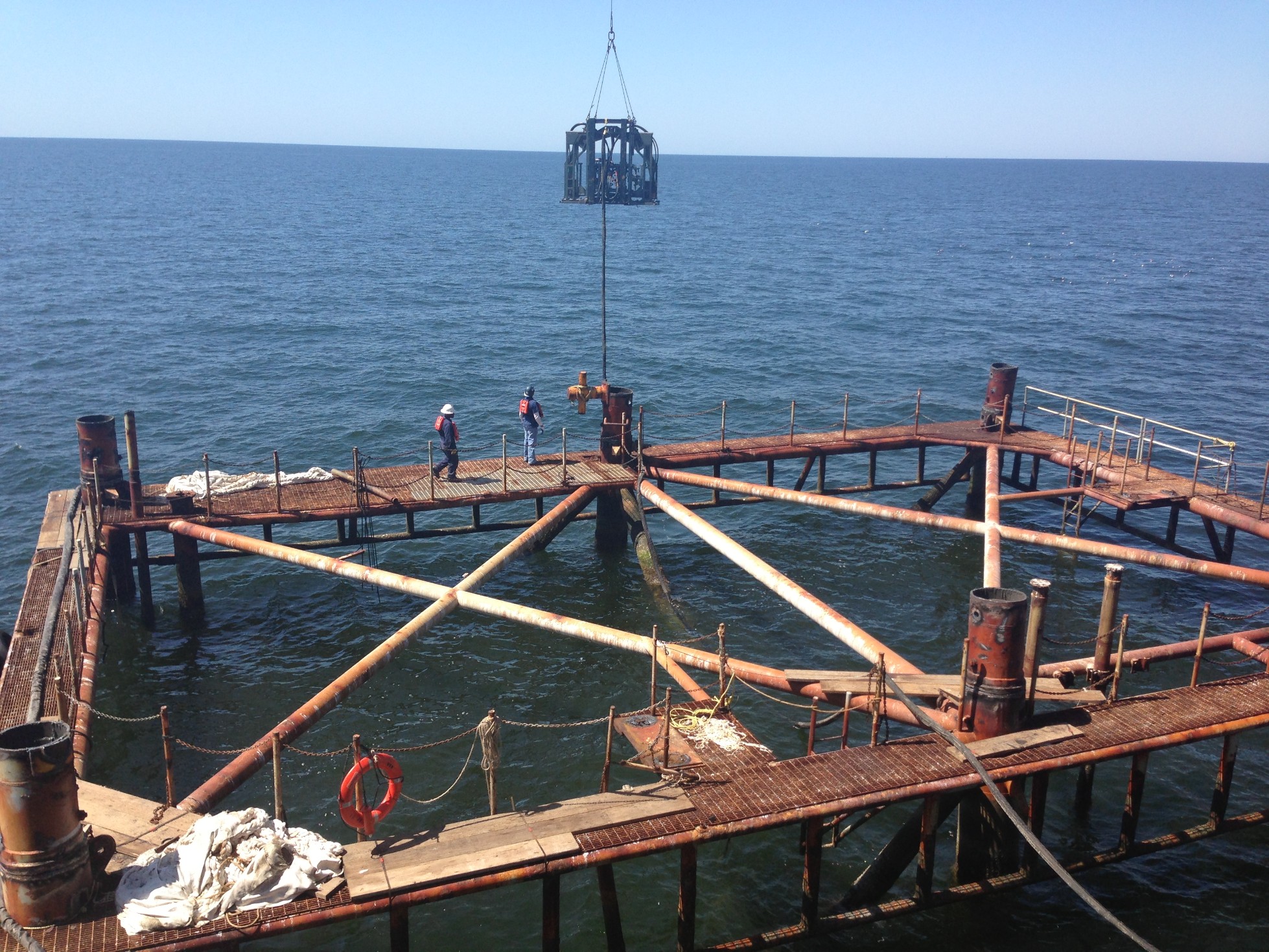

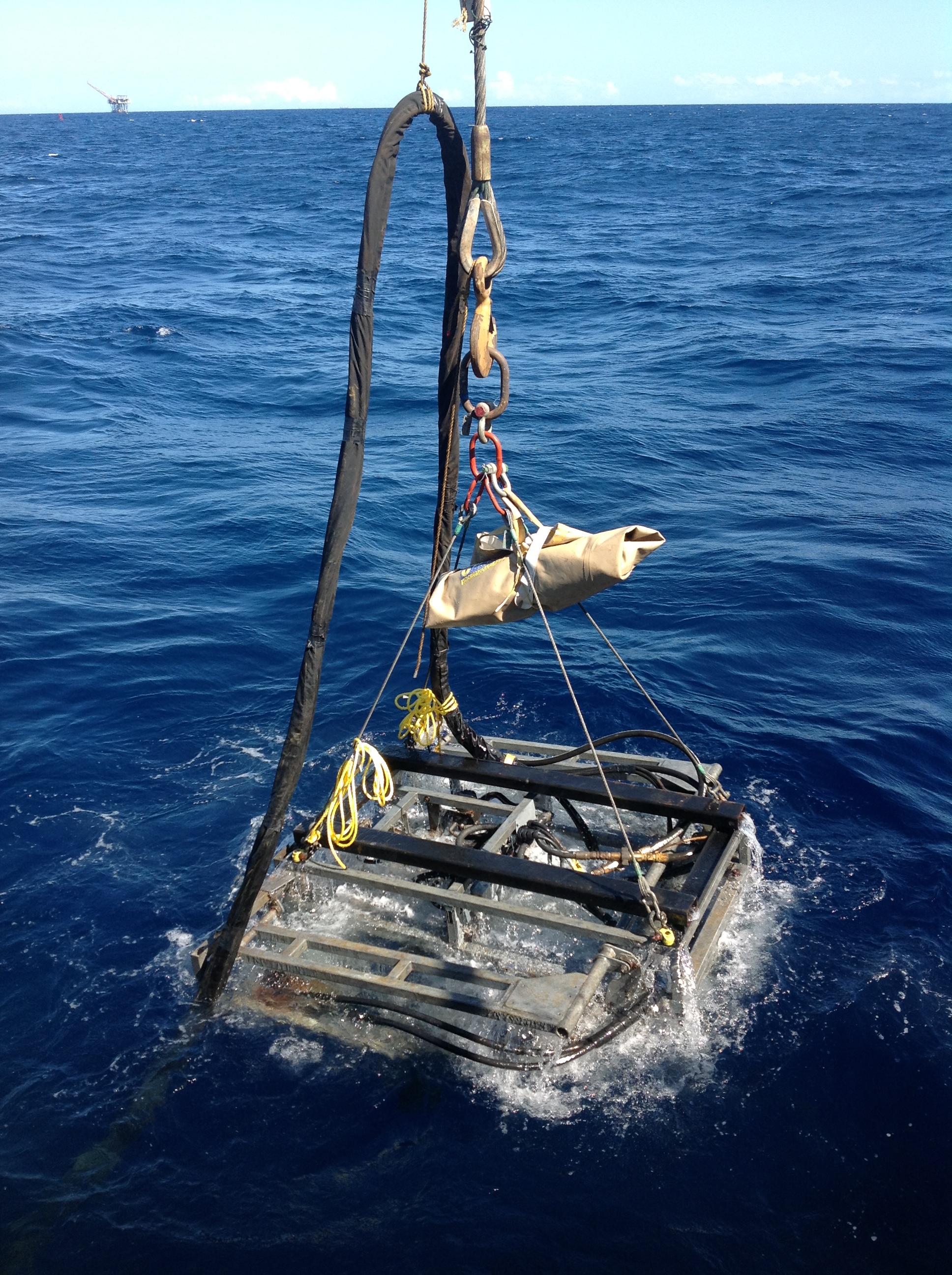

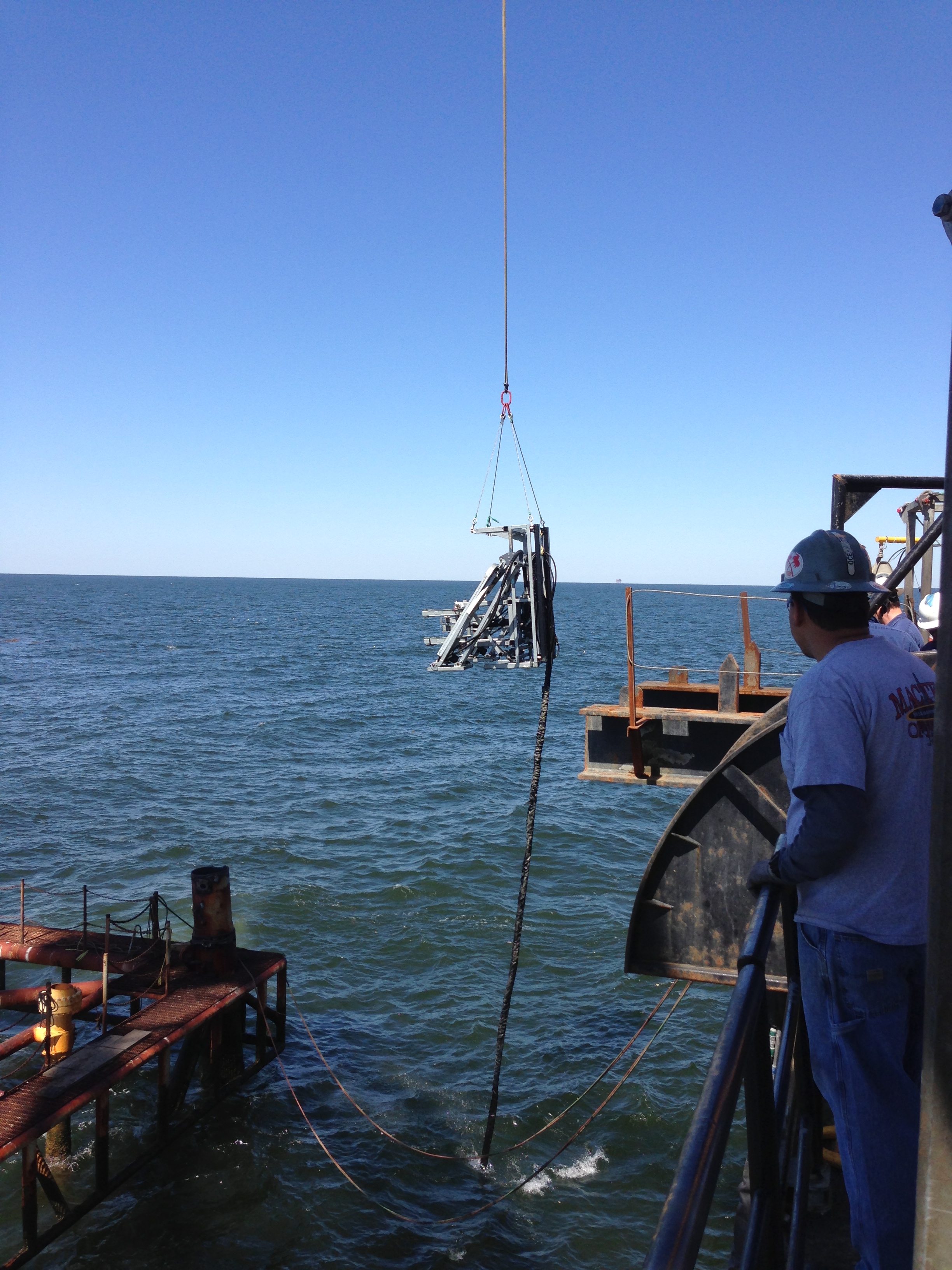

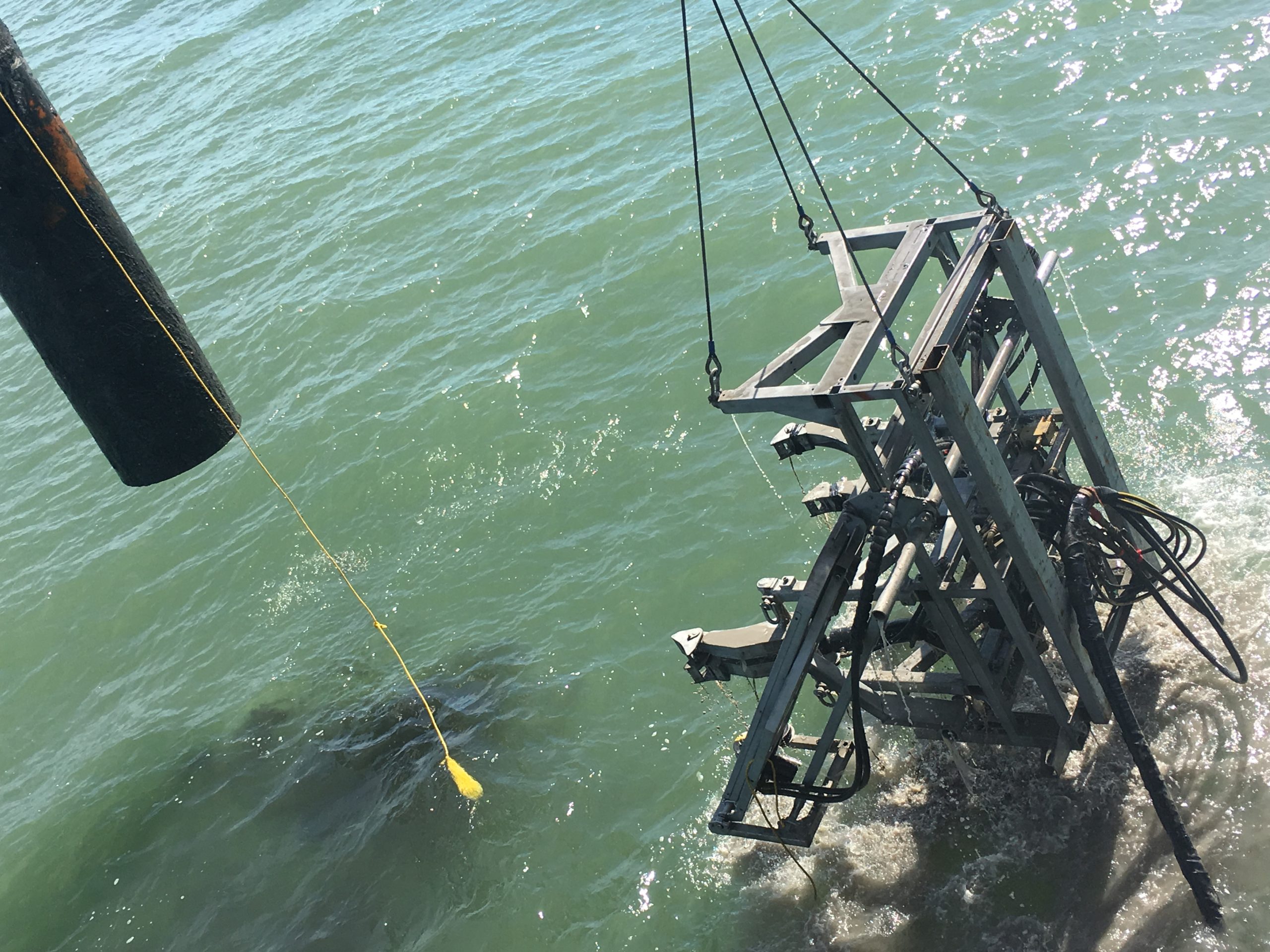

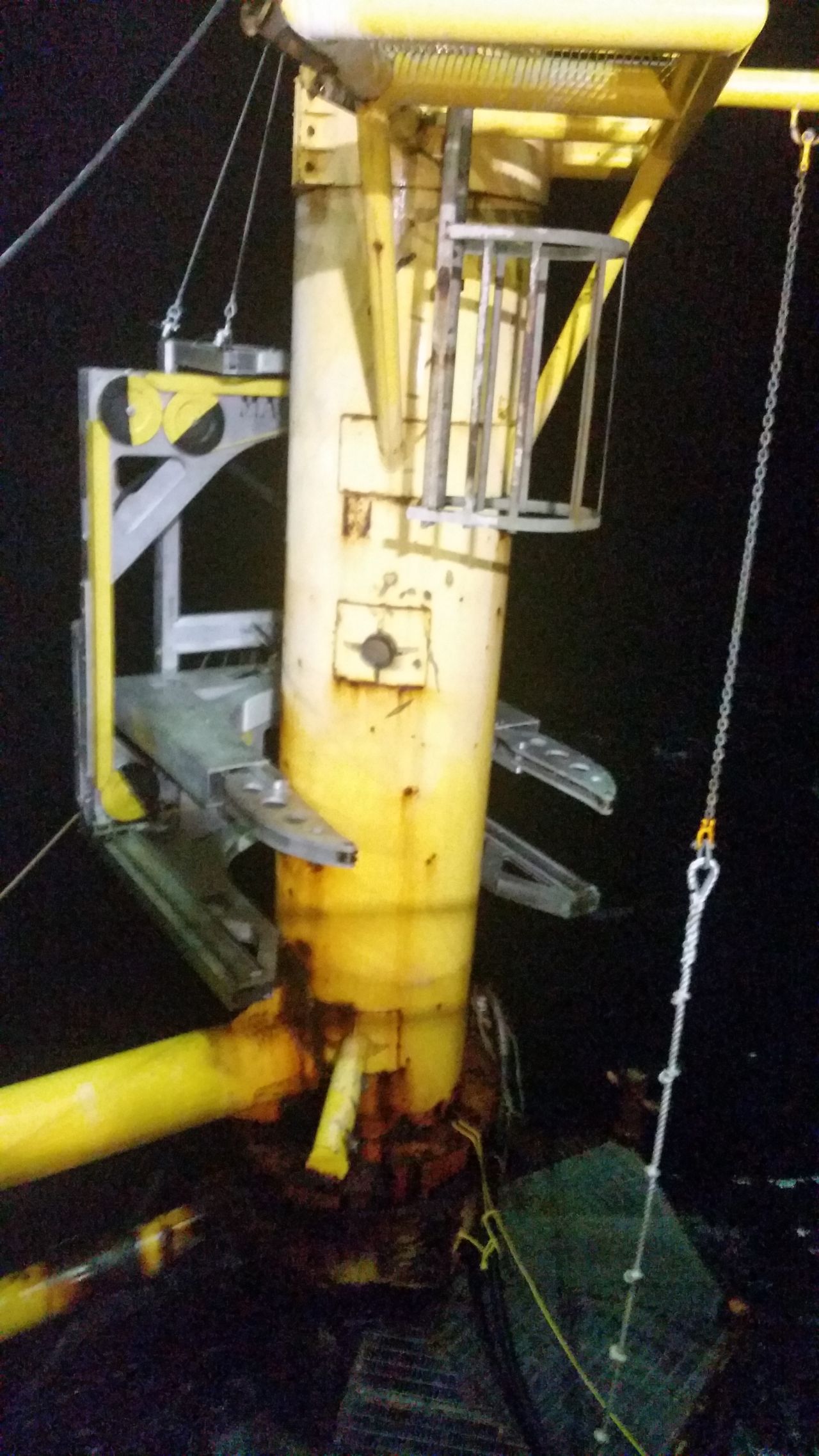

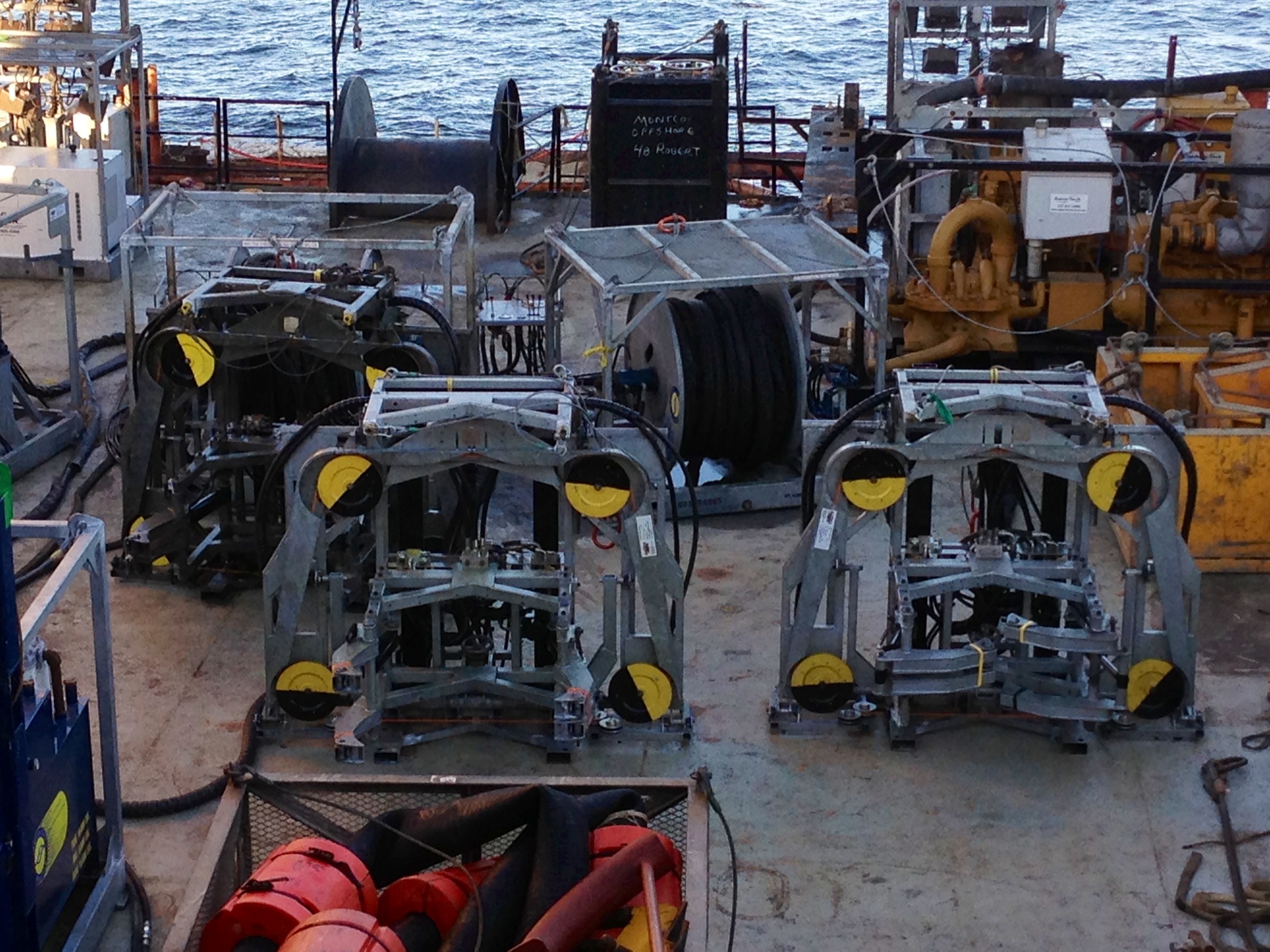

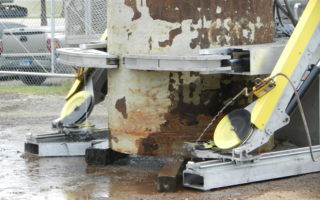

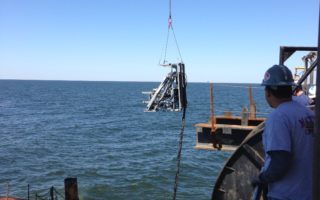

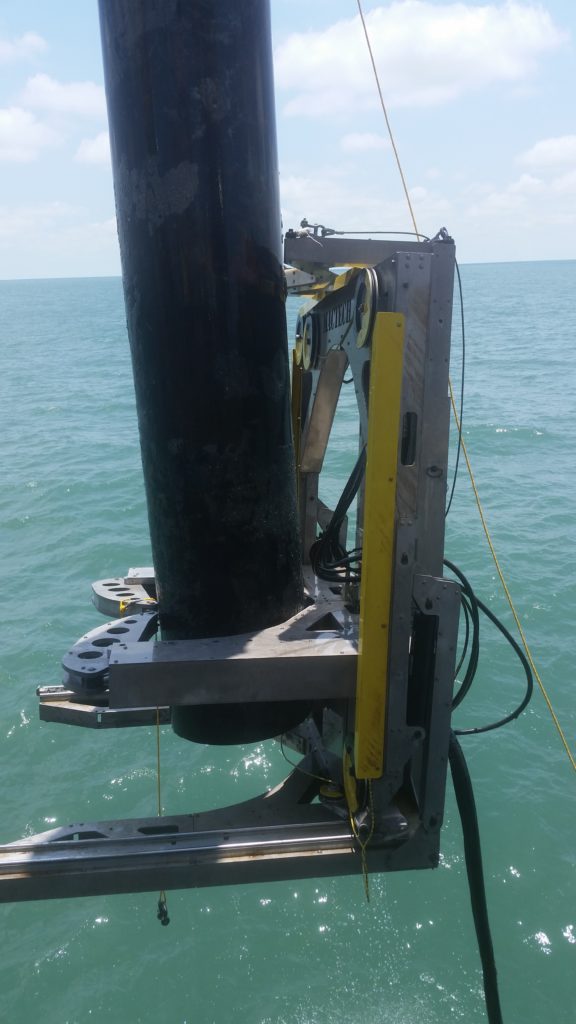

Articulating Diamond Wire Saw Photo

Want to learn more about the specs of our Articulating Diamond Wire Saw? Click the button below!
